Multi Functional AFM Atomic Force Microscopy Precise Biology Microscope

Name: Multi Functional AFM Atomic Force Microscopy Precise Biology Microscope
Brand: Truth Instruments
Price: 1 USD

Brand Name : Truth Instruments

Model Number : AtomEdge Pro

Place of Origin : CHINA

MOQ : 1

Price : Price Negotiable | Contact us for a detailed quote

Payment Terms : T/T

Name : AFM Atomic Force Microscopy

Scanning Method : XYZ three-axis full sample scanning

Scanning Range : 100 μm x100 μmx 10 μm

Scanning Rate : 0.1-30 Hz

Noise Level in The XY Direction : 0.4 nm

Noise Level in The Z Direction : 0.04 nm

Contact Now

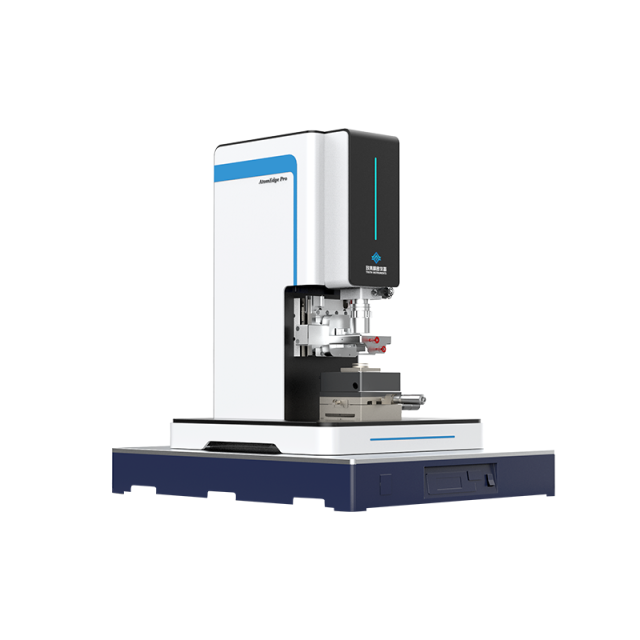

Multi-Functional Atomic Force Microscope

Product Model:

AtomEdge Pro

Product Description:

The AtomEdge Pro multi-functional atomic force microscope canperform three-dimensional scanning imaging on materials, electronic devices, biological samples, etc. lt features multiple working modes such as contact, tap, and non-contact, providing users with more flexible and precise operation options. In addition, it integrates multiple functional modes such as magnetic force microscopy, electrostatic force microscopy, scanning Kelvin microscopy, and piezoelectric force microscopy, featuring strong stability and good scalability. In addition, functional modules can be flexibly customized according to user needs, providing targeted solutions for specific research fields and achieving an efficient detection platform with multiple uses in one machine.

Equipment Performance:

Sample Size	25 mm
Scanning Method	XYZ three-axis full sample scanning
Scanning Range	100 μm x100 μmx 10 μm
Scanning Rate	0.1-30 Hz
Noise Level in The XY Direction	0.4 nm
Noise Level in The Z Direction	0.04 nm
Nonlinearity	0.15% in the xY direction and 1% in the Z direction
lmage Sampling Point	The maximum resolution of the scanning probe image is 4096x4096
Working Mode	Contact mode, tap mode, phase imaging mode, lift mode, multi-directional scanning mode
Multifunctional Measurement	Electrostatic force microscope (EFM), scanning Kelvin microscope (KPFM), piezoelectric force micro-scope (PFM),magnetic force microscope (MFM), force curve

Application Cases:

Multi Functional AFM Atomic Force Microscopy Precise Biology Microscope

Grid Calibration Standard
Scanning Mode: Topography Measurement
Scanning Range: 25 μm * 25 μm

Titanium Film - Aluminum Titanate Film
Scanning Mode: Piezoresponse Force Microscopy (PFM)
Scanning Range: 10 μm * 10 μm

Vanadium Sulfide Thin Film
Scanning Mode: Electrostatic Force Microscopy (EFM)
Scanning Range: 5 μm * 5 μm

Vanadium Sulfide Thin Film
Scanning Mode: Kelvin Probe Force Microscopy (KPFM)
Scanning Range: 5 μm * 5 μm

Co/Fe/B Thin Film
Scanning Mode: Magnetic Force Microscopy (MFM)
Scanning Range: 25 μm * 25 μm

Co/Pt Thin Film
Scanning Mode: Magnetic Force Microscopy (MFM)
Scanning Range: 30 μm * 30 μm

Morphology of Au-Ti Striped Electrode Sheet
Scanning Mode: Tapping Mode
Scanning Range: 18 μm * 18 μm

Al₂O₃ Whisker Morphology
Scanning Mode: Tapping Mode
Scanning Range: 15 μm * 15 μm

Epoxy Resin Polymer Morphology
Scanning Mode: Tapping Mode
Scanning Range: 7 μm * 7 μm

Pt-Co Thin Film Magnetism
Scanning Mode: MFM (Lift Mode)
Scanning Range: 5 μm * 5 μm

Lithium Niobate Thin Film
Scanning Mode: Piezoresponse Force Microscopy (PFM)
Scanning Range: 35 μm * 35 μm

Bacillus Immobilis
Scanning Mode: Topography Measurement
Scanning Range: 3 μm * 3 μm
